|Dimensions||32 × 32 × 12 cm|
|Number of Paddles||

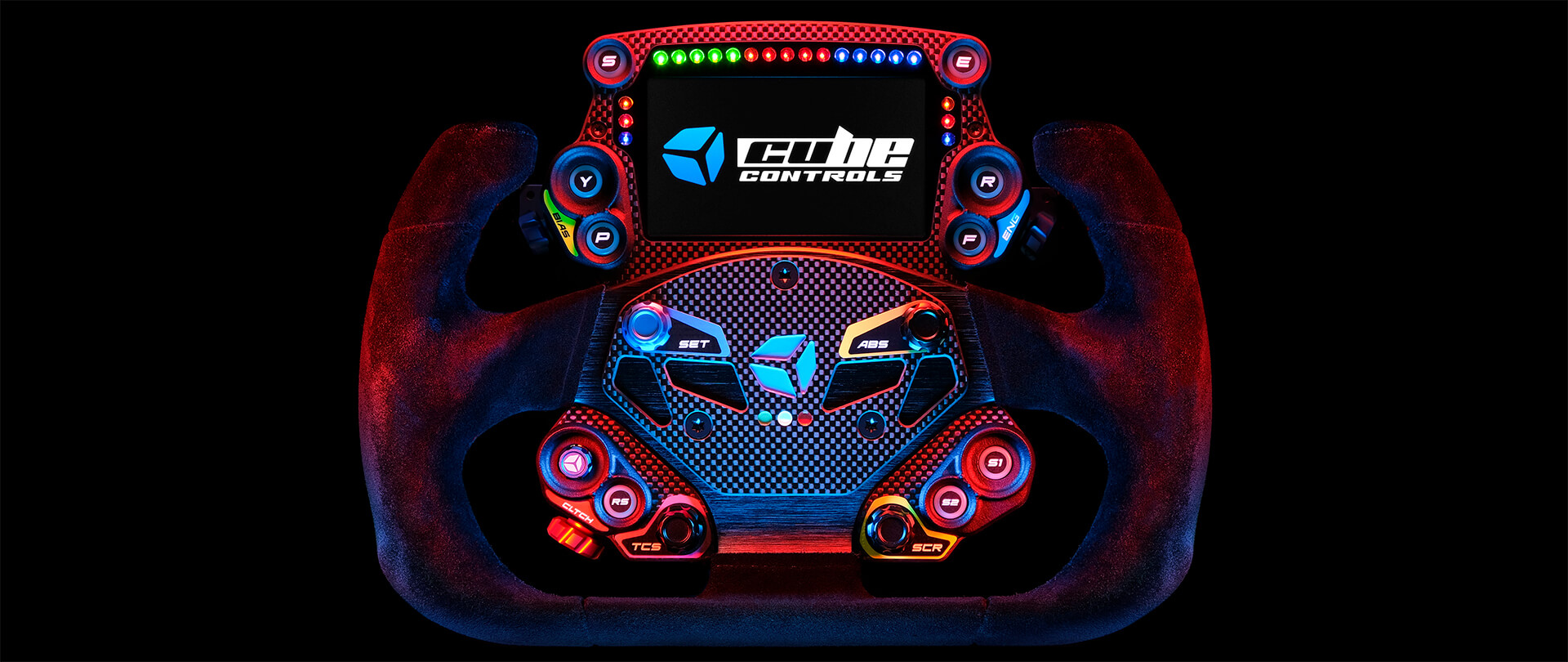

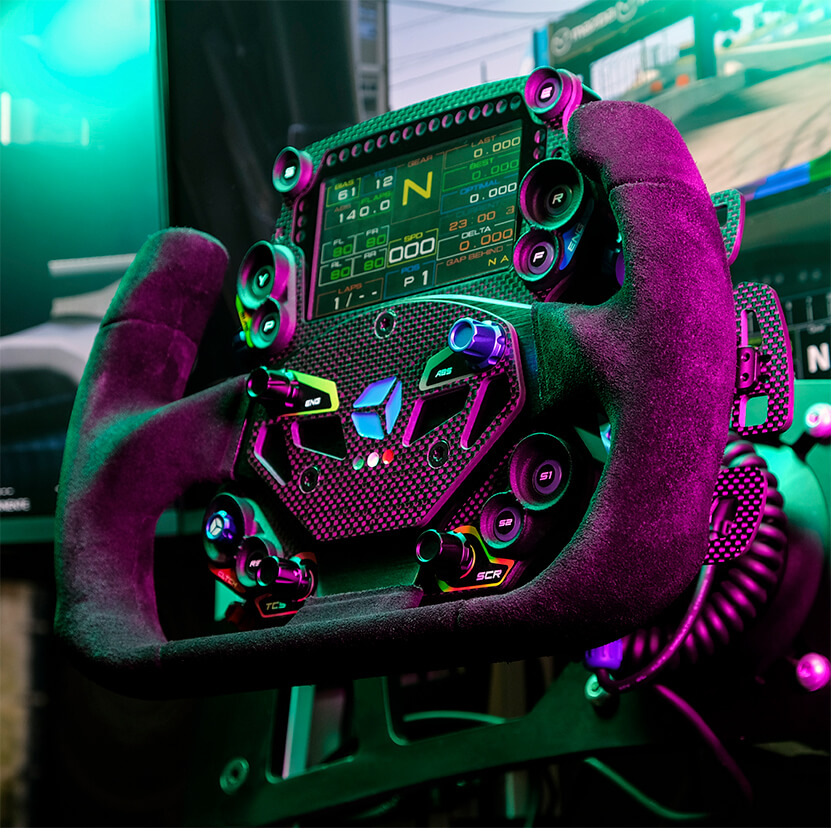

Upgrade your Grand Tourer experience with the GT-X. This is the result of a dedicated ergonomic research, with its completely custom-designed steering rim, enhanced precision and improved tactile feedback, the GT-X steering wheel is the flagship of our GT collection. Featuring backlit buttons and full-color 4.3” anti-scratch LCD. 100% pure carbon fiber. CNC aluminum main body, knobs and joystick. Optional extra paddle set.
|Custom designed and bespoke made ergonomic steering wheel rim, high quality suede leather wrapping||√|
|Grip-to-Grip wheel diameter||30 cm|
|Grip max diameter||42 mm|
|Short throw backlit switches||X|
|Straight back USB Connector||√|
|Front rotary encoders||4|
|Thumb rotary encoders||2|
|Multi-directional joystick with integrated encoder||√|
|Completely redesigned zero play short-throw custom-designed magnetic switchless shifter paddles with adjustable stop ends, ball bearing and improved tactile feedback||√|
|Zero play short-throw custom-designed magnetic switchless shifter paddles||√|
|4.3″ full-color LCD screen with completely customizable layouts and PC configuration utility||√|
|Anti-scratch strengthened display glass||√|
|User-configurable backlit buttons, each one can be individually turned off, set as flashing, reverse flashing, latching flash||√|
|In-software clutch and shifters configuration||√|
|Launch control clutch system with stiffer springs on the clutch levers||√|
|Optional extra paddle set||√|
|Passive Y splitter USB extension cord||√|
|Proprietary custom made tactile button assembly||√|
|Carbon fiber main plate||√|
|CNC machined billet aluminum main body||√|
|Wheel hub compatible with all formula-style quick release hubs (3 bolts, 1-inch and 70mm PCD)||√|
Q: What is included with your purchase?
A: Along with your steering wheel, you will receive in the package 1 USB cable, 1 Y splitter extension cord, 1 Sticker Set, the user Manual, and other needed tools to help you through the installation of your wheel.
Q: How can I connect the Formula GTX to my PC?
A: To connect your CSX2 to your PC use both the coiled USB cable (wrap it around the wheel hub) and the Y splitter extension cord (possibly plugged into two 3.0 USB backports of your PC).
Q: How can I attach it to my FFB base?
A: Our wheel hubs have an industry-standard 3 M5 holes 50,8mm PCD compatible with various adapters. We can provide them for Thrustmaster, Logitech (Fanatec bases require a Podium Hub purchasable from their store, while Accuforce needs their proprietary adapter). 50,8mm Universal QR will fit directly, as well the QRX. We also provide 50.8mm to 70mm 6 M5 hole conversion adapters.
Q: What’s the software to manage the Display?
A: UGT Software (Ultimate Game Tech). You will be able to customize the look and position of each data field. The display is not compatible with any other dashboards on the market (e.g. Z1)
Q: Is the clutch on the Formula wheels analog?
A: Yes it is. Both are mapped on the same axis, and the left one can be adjusted by using the launch control potentiometer.
Q: Are the shifter and clutch paddles adjustable?
A: Yes they are adjustable in reach and depth. We’ve reserved a 1 cm range which easily adapts to any hand size.
Q: How do the shifter paddles feel?
A: Firm. They have a very short and fast throw with a noticeable tactile clicky feedback. It’s built for sim racers.
Q: Can I customise a racing wheel or buy only single components?
A: Unfortunately, we can’t customise our products and we can’t sell single components. To ensure superior quality we allow to purchase only whole racing wheels.
Q: What is the product warranty?
A: All our products, as per the European law, are guaranteed for 2 years. The Warranty is reduced to 1 year for products purchased for internal usage by B2B customers (e.g. simulation venues using our products on their own sim rigs).
