Sim Racing Steering Wheel


The entry-level Sim Racing wheel for those who want to take it seriously.


tax and shipments not included


Unlock your talent with F-CORE. This wheel has everything you need to enjoy the beauty of sim racing while living an exceptional driving experience. Featuring Q-CONN magnetic connection and USB/Bluetooth Dual Mode. Built with a strong carbon fiber front plate and rock-solid electronics. Customize your F-CORE! With or without clutches, you even have two shifter variants to choose from: in reinforced carbon polymer (ultra-light and versatile) or full aluminium (with a sharp feeling!). Hub is available separately.

fcore prov

The best starter pack

F-CORE is the ideal choice to take your setup to a new level and experience the benefits of superior hardware. Despite its entry-level nature, the steering wheel boasts a unique design and provide you a flexible platform to explore top performances. The F-CORE won't give up on superior reliability and features a 2000mAh LiPo rechargeable battery, with a duration of up to 40 hours, suitable for long driving sessions without sacrificing comfort.

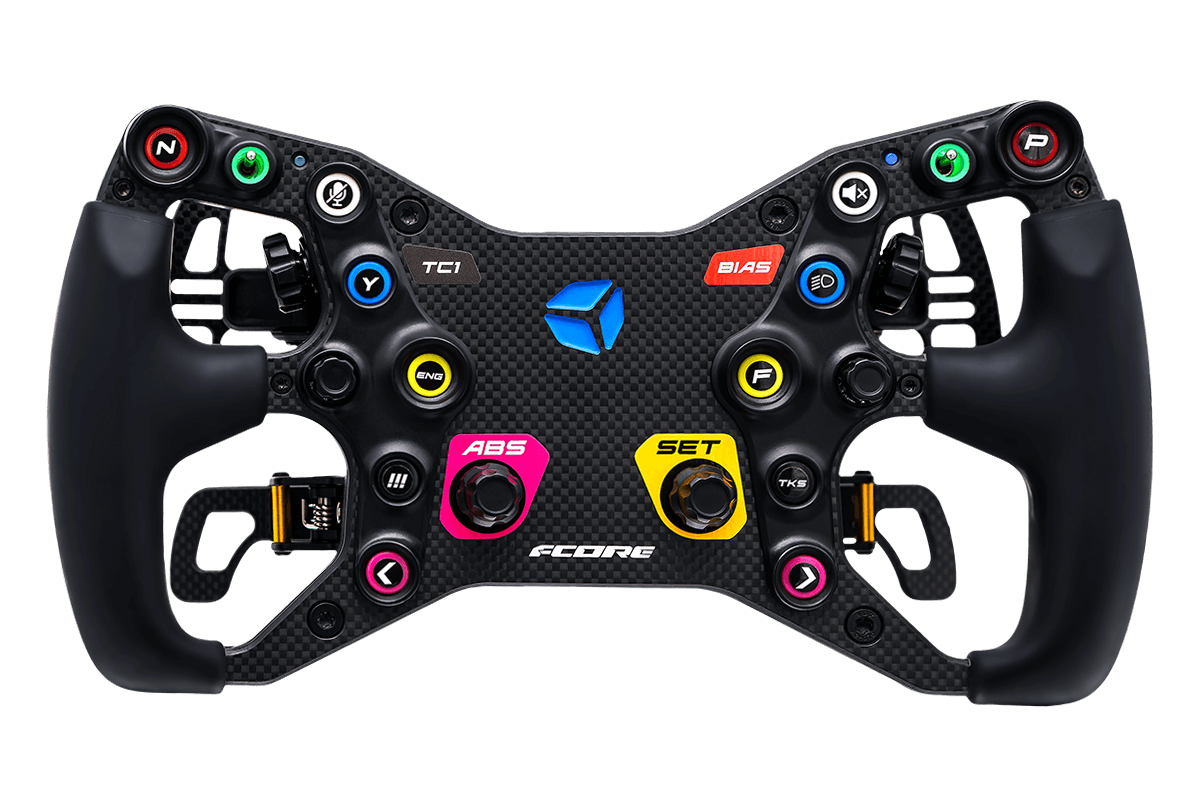

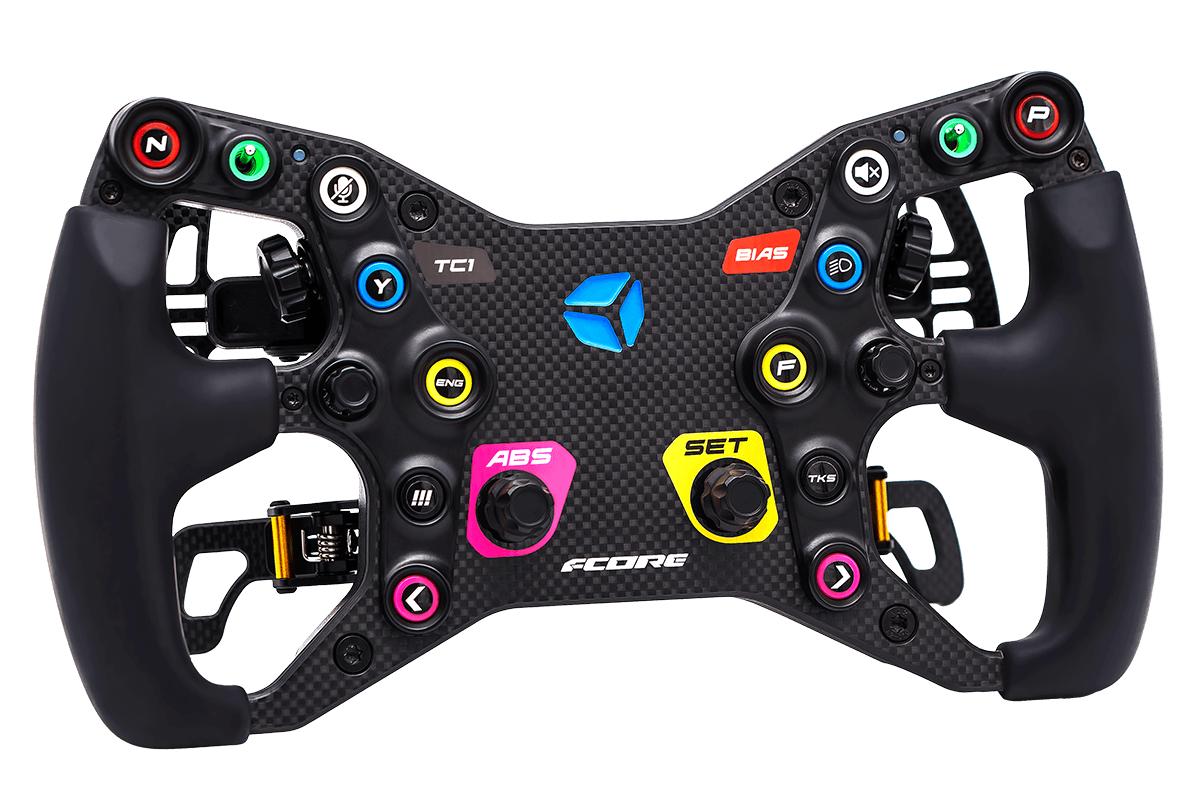

Formula F-Core

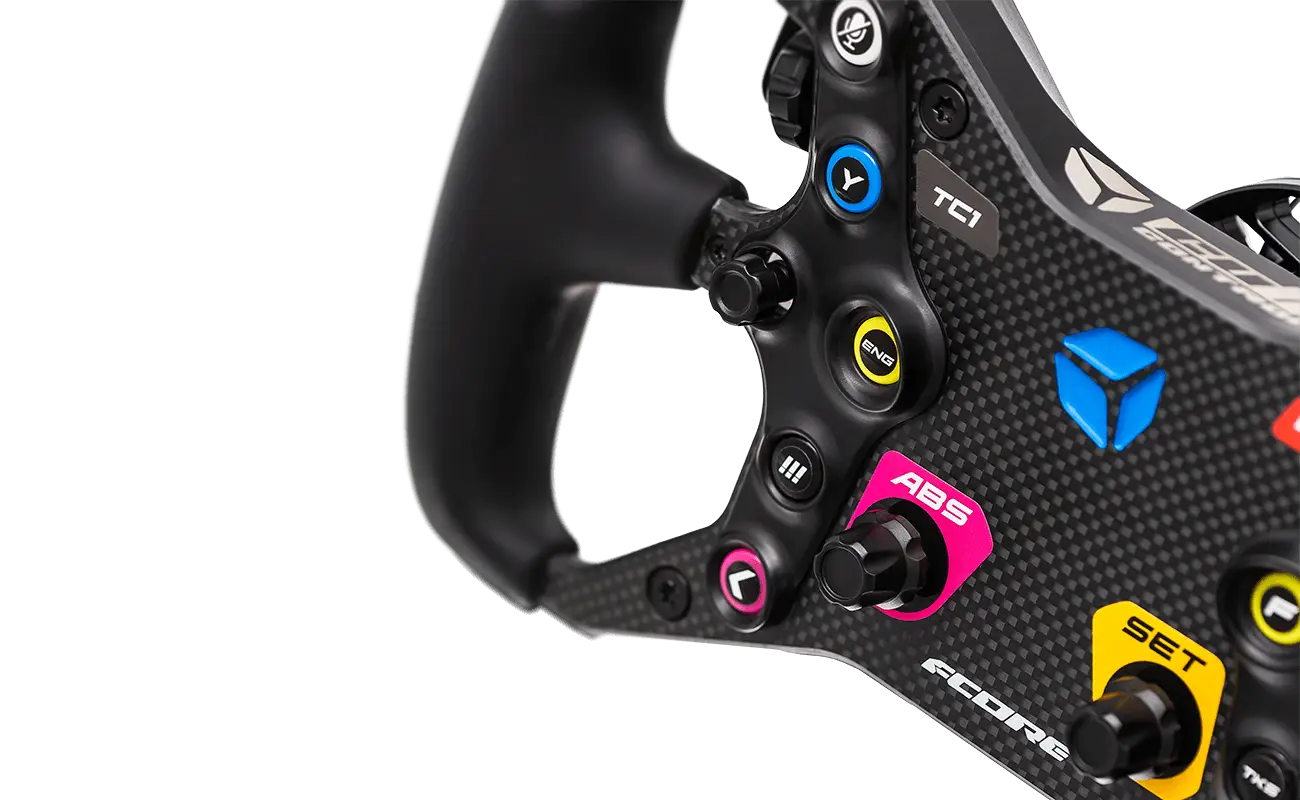

Pure carbon-fiber front plate (4mm)

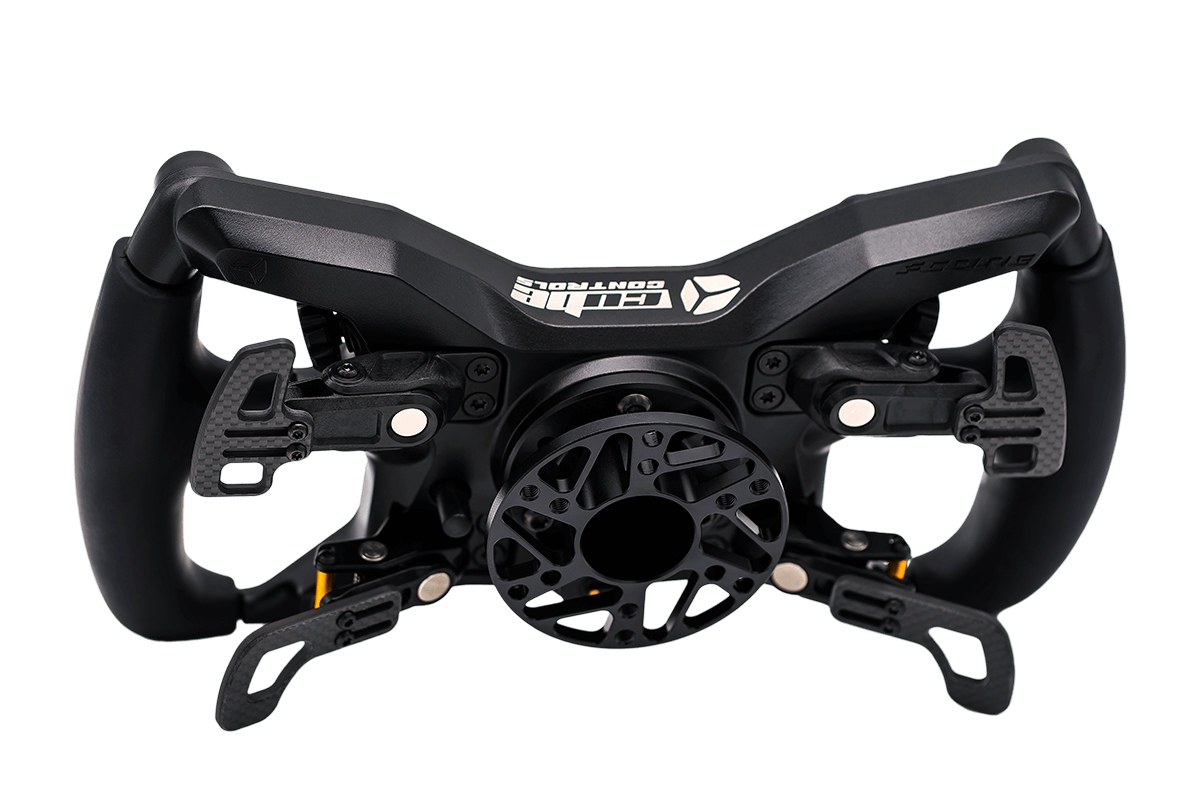

Die-cast aluminium main body
New and Improved Handgrips in Silicon & Rubber
Grip-to-Grip wheel length 29,00 cm
Grip max diameter 43,00 mm
Proprietary custom-made tactile button assembly
Improved button guards with better ergonomics and feeling
Wheel hub compatible with all formula-style quick release hubs (3 bolts, 1-inch and 70mm PCD) (sold separately)
Straight back charging connector
LiPo battery (up to 60 hours of use) (V 2000 mAh)
Integrated charging electronics
Connection and battery status LEDs (green when charged, red while charging, yellow when out of power)
Q-CONN magnetic connection cable
Momentary buttons 12
On/off toggle switches with status led 2
Front rotary encoders 2
Thumb rotary encoders 2
Multi-directional joystick with integrated encoder

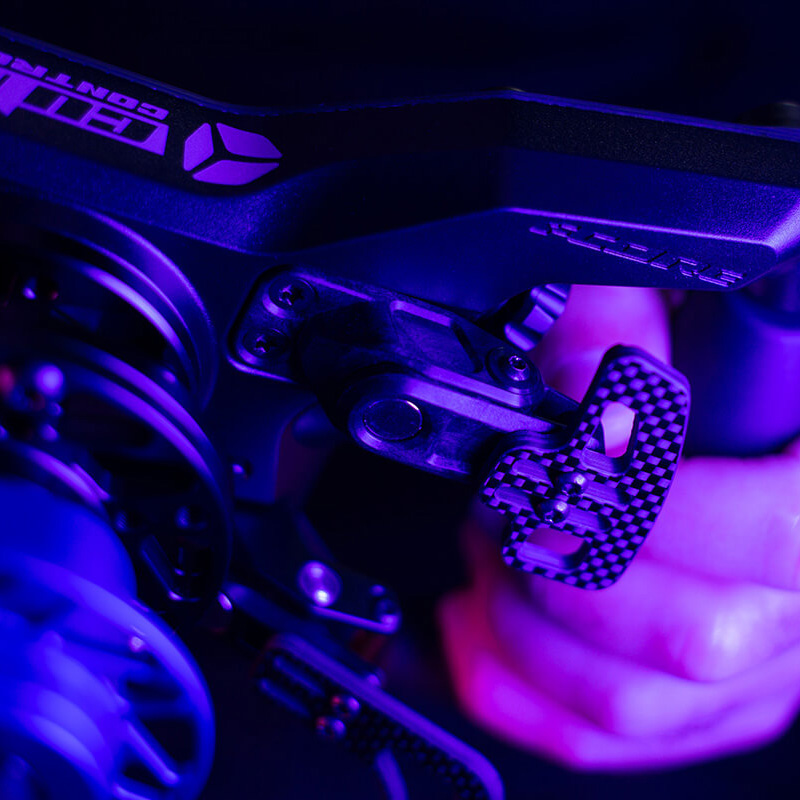

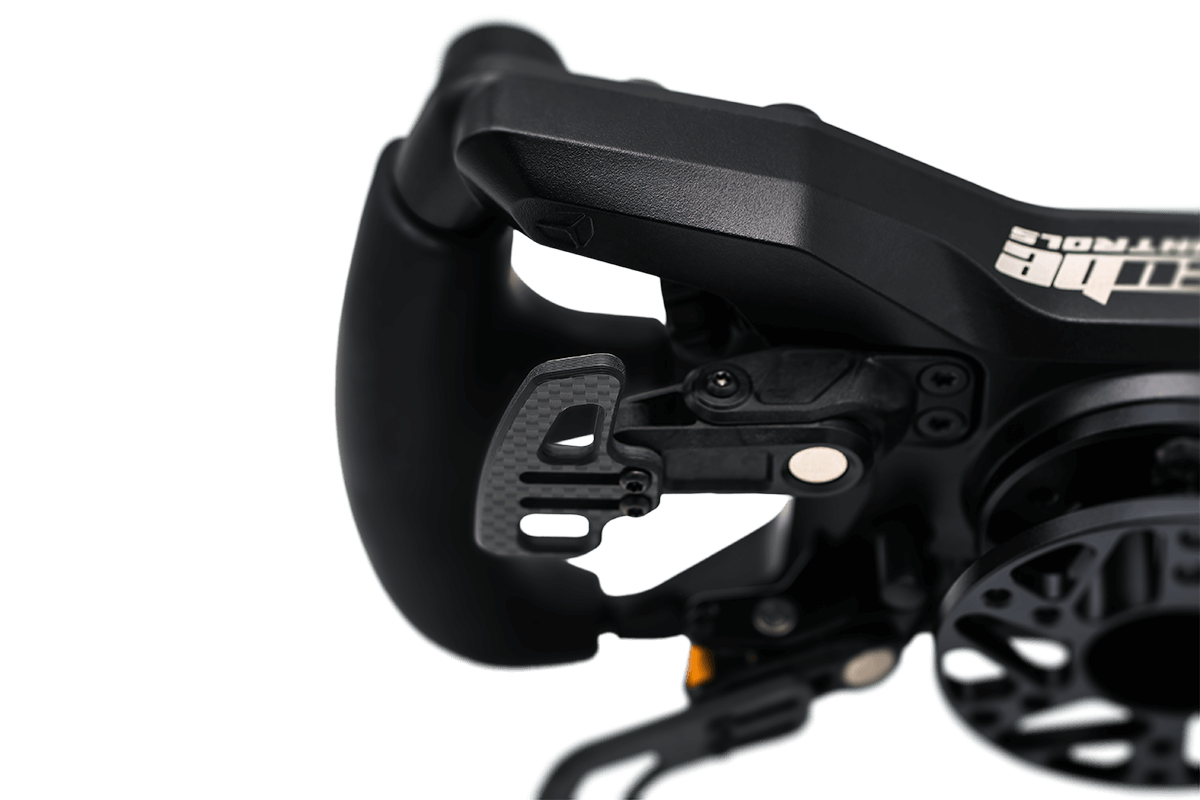

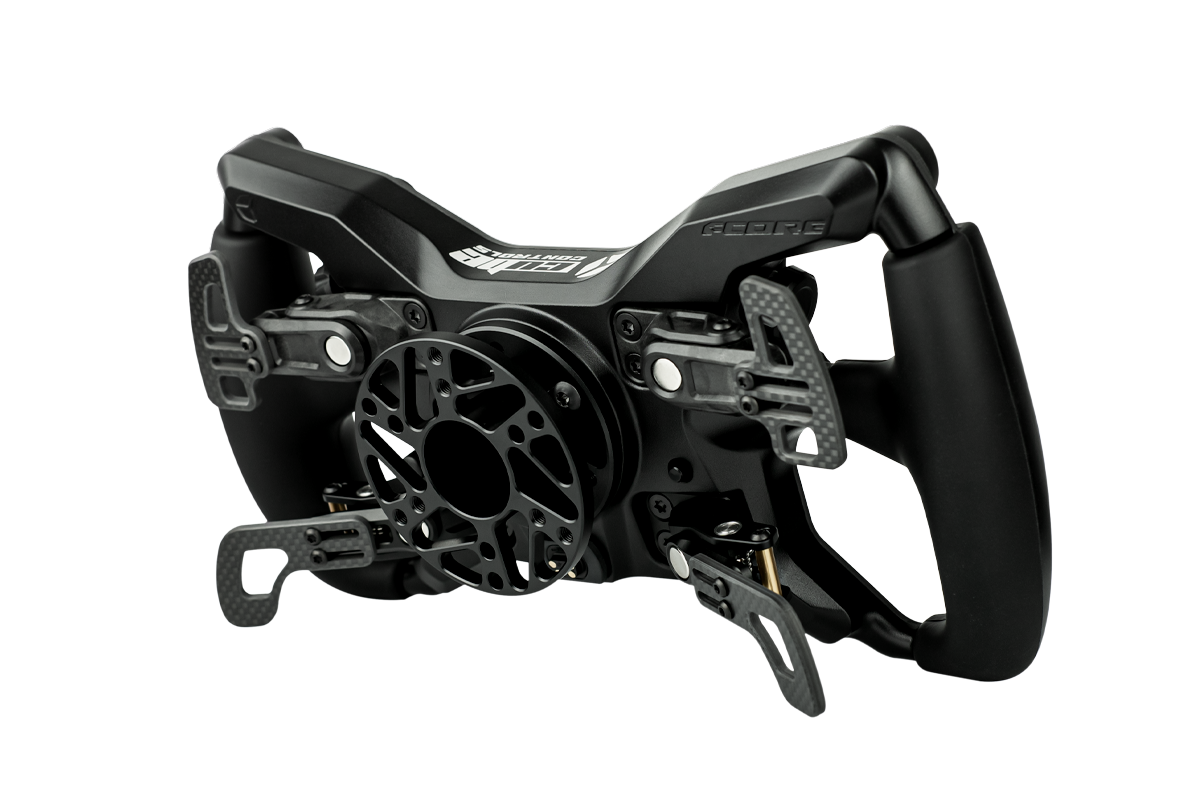

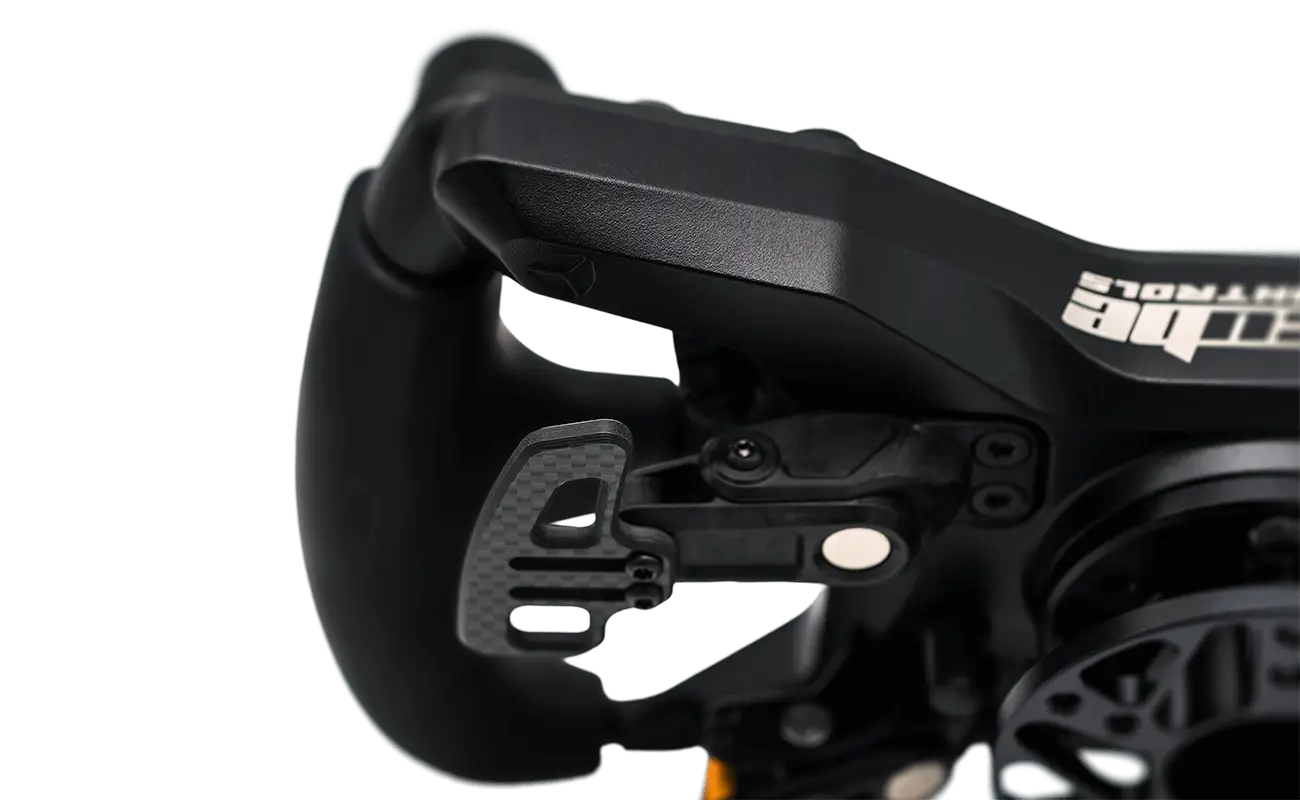

Core Shifter Paddles in composite material, Nylon-Carbon Fiber injected
Full Aluminium PRO Clutches compatible (sold separately)
Launch control clutch system
On/off pushbutton on the backside of the wheel
VR friendly
Weight 895 gr
USB+Bluetooth Dual mode
In-software clutch and shifters configuration
Shifter Upgrade (sold separately)


Active Updates Notification


For previous firmware and software iterations check the Media/Download section of the site.

D: How can I calibrate the shifter paddles?

A: F-CORE allows you to easily calibrate the shifter paddles, adjust the bite-point of the clutches and customize the light of the buttons through its proprietary software. You can find it in the DOWNLOAD section.

D: How can I get the software?

A: In the download section, you can find the latest version of the software. New firmware versions will be periodically released to improve the system stability and bring new options.

D: Is the magnetic connector strong enough?

A: Absolutely. It’s specifically designed to ensure a secure connection while keeping safe the product in case too many strong forces will be applied to the connector.

D: How long does the battery last?

A: From 40 up to 50 hours. You can customize them through the F-CORE software.

D: Is the Bluetooth connection reliable?

A: F-CORE will pair instantly to your PC as any other Bluetooth device, bypassing the wheelbase. Input lag is close to zero. However, we recommend using a good Bluetooth Receiver adapter on your computer.

CSX-3 F-CORE Launch Trailer Laurence Dusoswa 🇬🇧 F-CORE Review Shinji Channel 🇯🇵 F-CORE Review
Boosted Media 🇬🇧 F-CORE Review Ron Review 🇩🇪 F-CORE Review

Additional information

Weight 4,5 kg
Dimensions 41 × 34 × 17 cm

2+, 4+, 2, 4


None, Black, Blue
